Hitec HS-85MG Premium Metal Gear Micro, Top BB (49 oz/in | 0.14
Hitec HS-85MG Premium Metal Gear Micro, Top BB (49 oz/in | 0.14
Regular price
$54.99
Sale price
$54.99
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Next day delivery in the Maritimes? Be quick!
Question about this product?
We're happy to help.
The HS-85MG features a high power motor for greater speed and torque.The HS-85MG is the choice of modelers looking for a high performanceservo without breaking the bank. The ball bearing supported outputshaft and sturdy gear trains are preferred for smaller glow and electricairplanes, helis and sail planes.
Features
- High Torque and Precision Centering
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
| Performance Specifications | |
|---|---|
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.16 ~ 0.14 |
| Maximum Torque Range oz. / in.: | 42 ~ 49 |
| Maximum Torque Range kg. / cm.: | 3.0 ~ 3.5 |
| Current Draw at Idle: | 8 mA |
| No Load Operating Current Draw: | 240 mA |
| Stall Current Draw: | 1,200 mA |
| Dead Band Width: | 8 us |
| Physical Specifications | |

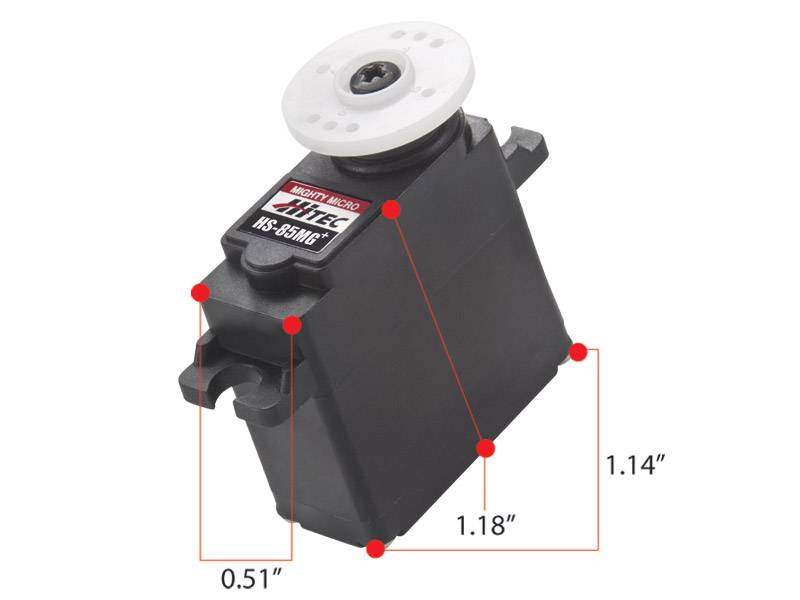

| Dimensions (Inches): | 1.14 x 0.51 x 1.18 |
| Dimensions (Metric): | 29.0 x 13.0 x 30.0 |
| Weight (Ounces): | 0.77 |
| Weight (Gram): | 21.9 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Metal |
| Bearing Type: | Top Ball Bearing |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 28 / 20 |
